1100V AC – IS 7098 – PART 1

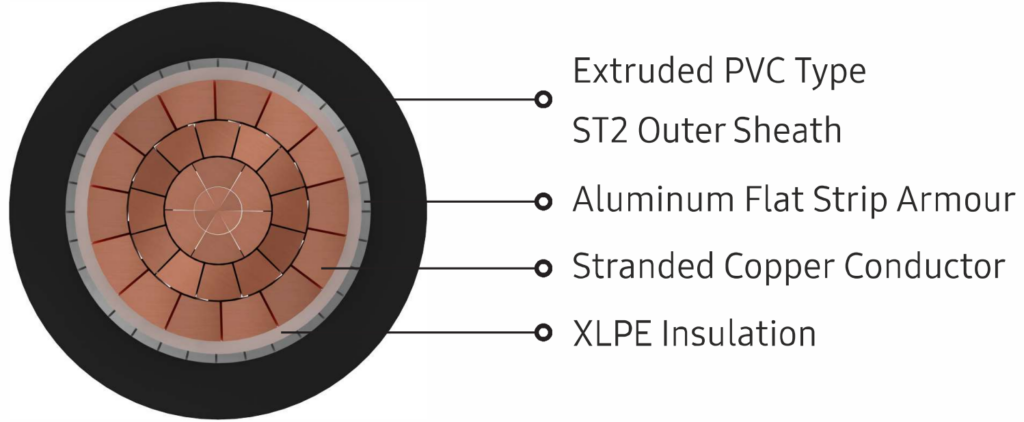

NESKEB 2XWaY/2XFaY SC, stranded compacted copper conductor, XLPE insulated and PVC sheathed armoured cable conforming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.
1100 V
IS 8130:2013, IS 5831:1984, IS 7098-1:1988
Max : 90°C
Short Circuit Temperature 250°C
Conductor resistance – IS 8130:2013
Insulation resistance – IS 7098-1:1988
Flammability test – IEC 60332-1-2:2015
Red / Black / Yellow / Blue / Natural
Fixed installation | 12 x Overall diameter
