COPPER HOFR WELDING CABLE IS 9857

Application

NESKEB HOFR Welding Cable IS 9857, These cables are designed to use in machine welding & hand welding to work at dry and wet locations as well as outdoor use. For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot-welding machines.

Voltage Rating

1000 V

Standard And References

IS 8130:2013, IS 6380:1984*, IS 9857:1990*

Operation Temperature

-20°C to +90°C

Compliance

Conductor Resistance – IS 8130-2013
Insulation Resistance – IS 7098-1:1988
Flammability Test – IEC 60332-1-2015

Core Identification

Black / Orange (without ISI mark)

Bending Radius

Fixed Installation | 6 x Overall Diameter

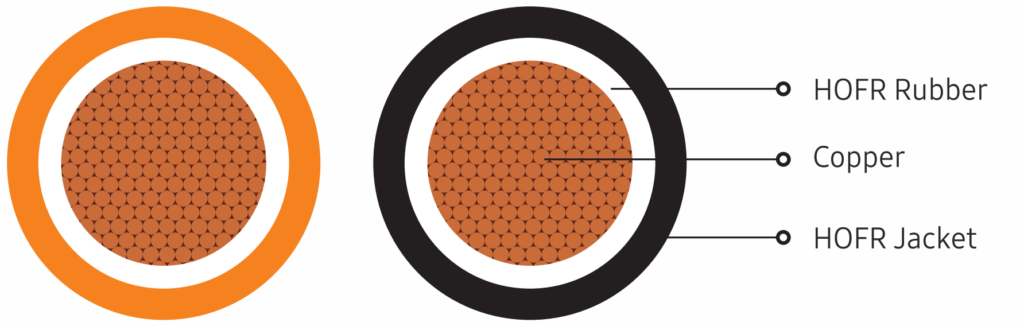

Construction

  • Annealed plain bunched electrolytic grade copper conductor to IS 8130
  • Separated by PET polyester tape
  • Insulated with SE3 (HOFR – Heat and Oil Resistant and Flame Retardant) to IS 6380
  • HOFR Jacket
