3 CORE AWG FLAT SUBMERSIBLE PUMP CABLE

600V

Application

For use in residential, farm and industrial water well applications. Grounded and ungrounded water well cable systems. The insulation used on cables is abrasion resistant. The cables can work submerged in water and are resistant to exposure to sunlight. Cables are marked sequentially for length and specification. Special packaging is available upon request.

Voltage Rating

Standard voltage rating up to 600V (some specialized variations go up to 1000V)

Standard And References

ASTM B3 and B8, UL-83

Operation Temperature

90°C Dry, 75°C Wet

Compliance

As per ASTM B3 and B8 for conductor
UL-83 for insulation and jacket

Core Identification

Red, Yellow and Black

Bending Radius

Fixed Installation | 6 x Overall Diameter

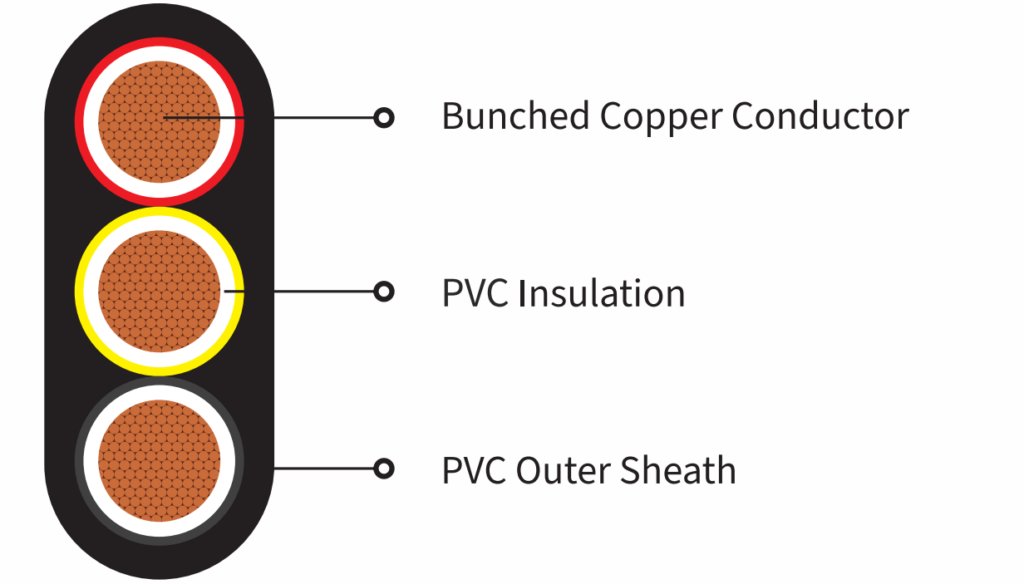

Construction

  • Conductor: Class C stranded, soft, bare copper as per ASTM B3 and B8
  • Insulation: Insulated with Polyvinyl Chloride (PVC) Type THW as per UL-83
  • Jacket: Sheathed with Polyvinyl Chloride (PVC) Type THW as per UL-83
