XLPE/PVC 3 CORE SUBMERSIBLE FLAT CABLE

1100 V, IS 694

Application

NESKEB 3 Core Submersible flexible flat cable, XLPE insulated and sheathed with PVC confirming to IS 694 is suitable to use for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. Neskeb Submersible Cable is highly recommended for submersible pump due to its rugged nature and extended life. They are also used in many industrial applications. The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water.

Voltage Rating

 1100 V

Standard And References

IS 694, IS 8130, IS 5831

Operation Temperature

Fixed: -20°C to 90°C

Compliance

Conductor resistance – IS 8130
Insulation resistance – IS 7098

Core Identification

Red, Yellow and Blue

Bending Radius

Fixed Installation | 8 x Overall Diameter

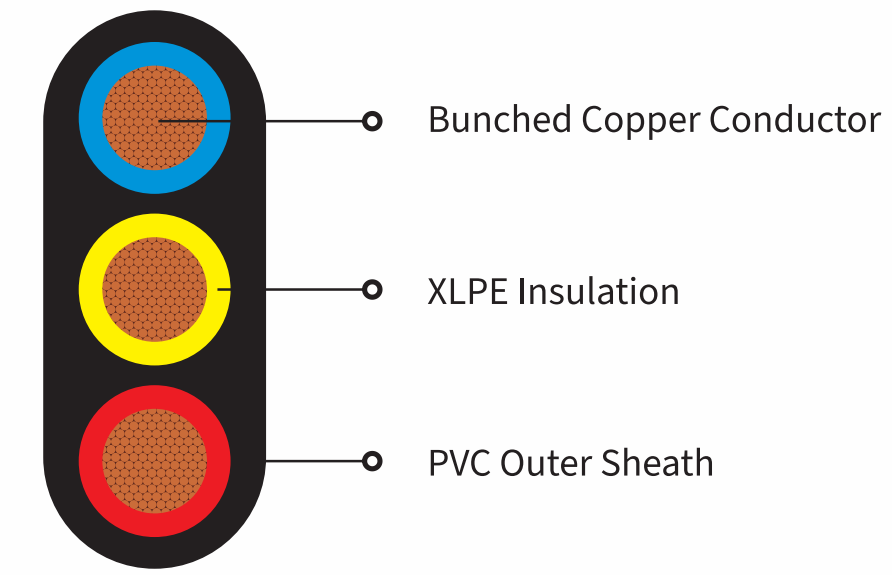

Construction

  • Bunched copper conductor as per IS 8130, Class 5
  • Insulated with Cross linked polyethylene XLPE
  • Sheathed with PVC Type ST1 to IS 5831
