EPR/EPR 3 CORE RUBBER SUBMERSIBLE FLAT CABLE

1100 V

Application

NESKEB 3 Core Submersible flexible flat cable, insulated and sheathed with Ethylene Propylene Rubber (EPR) is suitable to use for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. Neskeb Submersible Cable is highly recommended for submersible pump due to its rugged nature and extended life. They are also used in many industrial applications. The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water.

Voltage Rating

 1100 V

Standard And References

DIN VDE 0282 part 810, IEC 245 & BS 6007, BS 6899

Operation Temperature

Fixed: -40°C to +90°C

Compliance

Conductor resistance – IS 8130
Sheath resistance – IS 6380

Core Identification

3C – Red, Yellow, Blue or Black, Blue, Brown

Bending Radius

Fixed Installation | 6 x Overall Diameter
Occasional | 4 x Overall Diameter

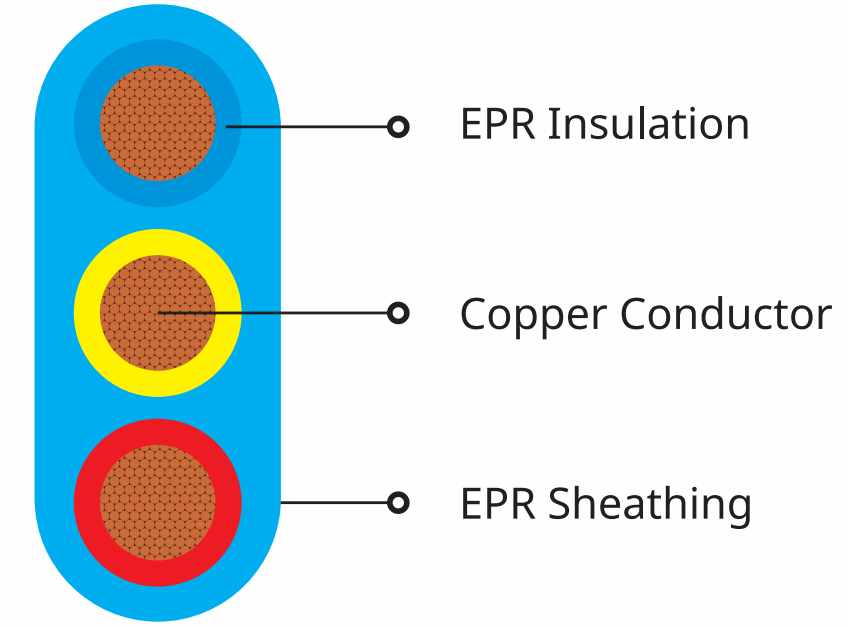

Construction

  • Bunched copper conductor as per IS 8130, class 5
  • Insulated with Ethylene Propylene Rubber (EPR)
  • Sheathed with Ethylene Propylene Rubber (EPR)
